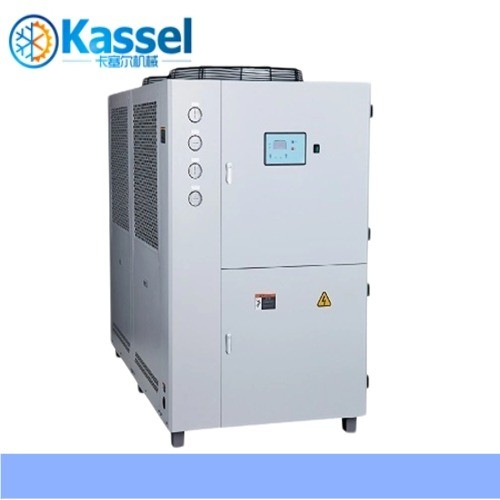

Portable air chillers, ranging from 2kw to 130kw in cooling capacity, utilize air-cooled cooling mechanisms, using fan motor operation to regulate airflow for effective cooling. These portable air chillers, find applications in various industries such as injection molding, plastic absorption, coating, UV, and printing. In the printing industry, stringer roller cooling systems are vital but often neglected, requiring regular operator checks and adjustments for proper functioning. Neglecting these systems can lead to inadequate cooling, impacting print quality and efficiency. Installing a portable air cooled chiller near the printing press swiftly lowers the printed surface temperature, ensuring stability and quality during printing without frequent interruptions.

●The portable chiller units adopt a vertical exhaust design, which can effectively discharge the heat upwards and improve the comfort of the plant environment.

●Hot gas bypass valve: By properly adjusting the opening of the bypass valve, the pressure in the cooling system can be controlled to prevent the system pressure from being too high or too low, to protect the portable chiller units from being damaged; it can also be used for controlling the system temperature and system balance.

●Filter drier: used to remove moisture and impurities in the refrigeration system, to avoid impurities blocking the refrigeration system pipeline, impede the flow of coolant, reduce the efficiency of the refrigeration system, reduce the failure rate of the refrigeration system

●Air-cooled cooling: In the mobile air-cooled chiller, the airflow is changed through the operation of the fan motor, so that the air pressure in the cooling system reaches the required set value, thus maintaining the stable operation of the system and the effective cooling effect.

●Pressure gauge: by observing the reading of the pressure gauge, it can be judged whether the system is running normally or whether there is any pressure abnormality, etc., which is convenient for the staff to carry out fault diagnosis.

●Easy to install and use: one-piece design, just pass the portable air unit into the cooling water inlet and outlet, and power can be used.

●High accuracy of temperature control: ± 1℃

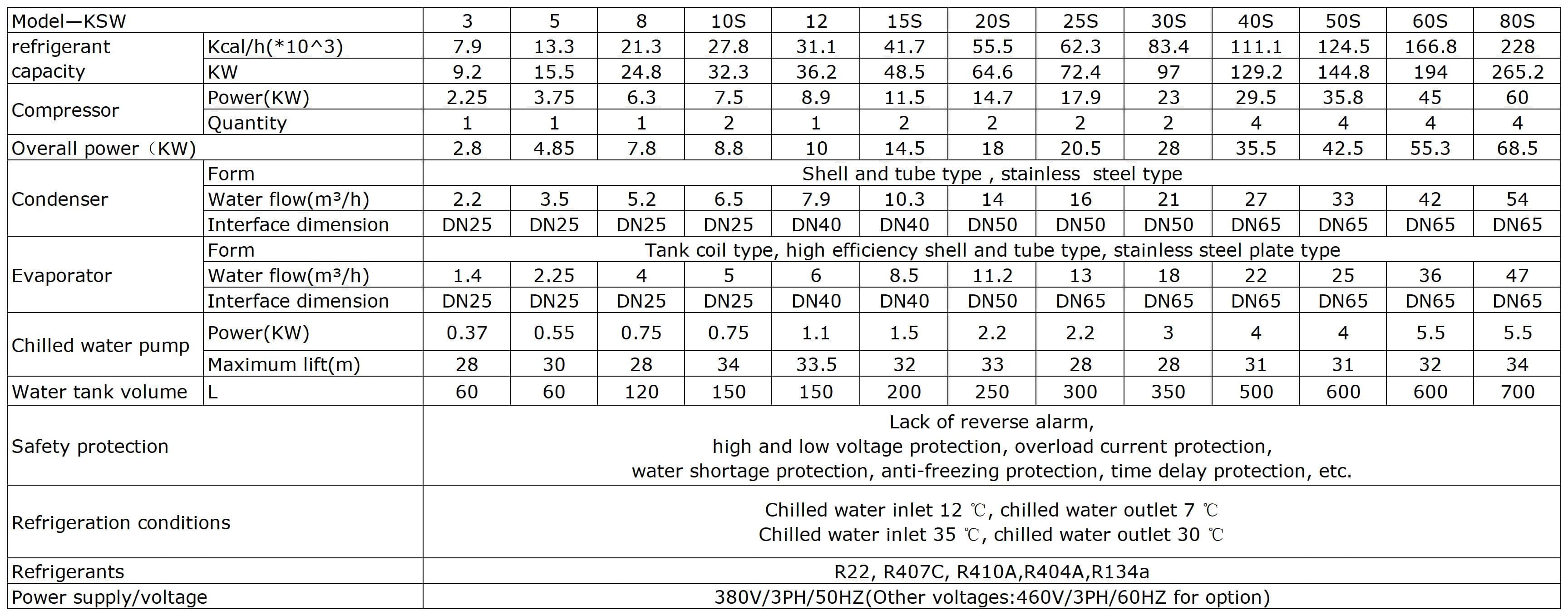

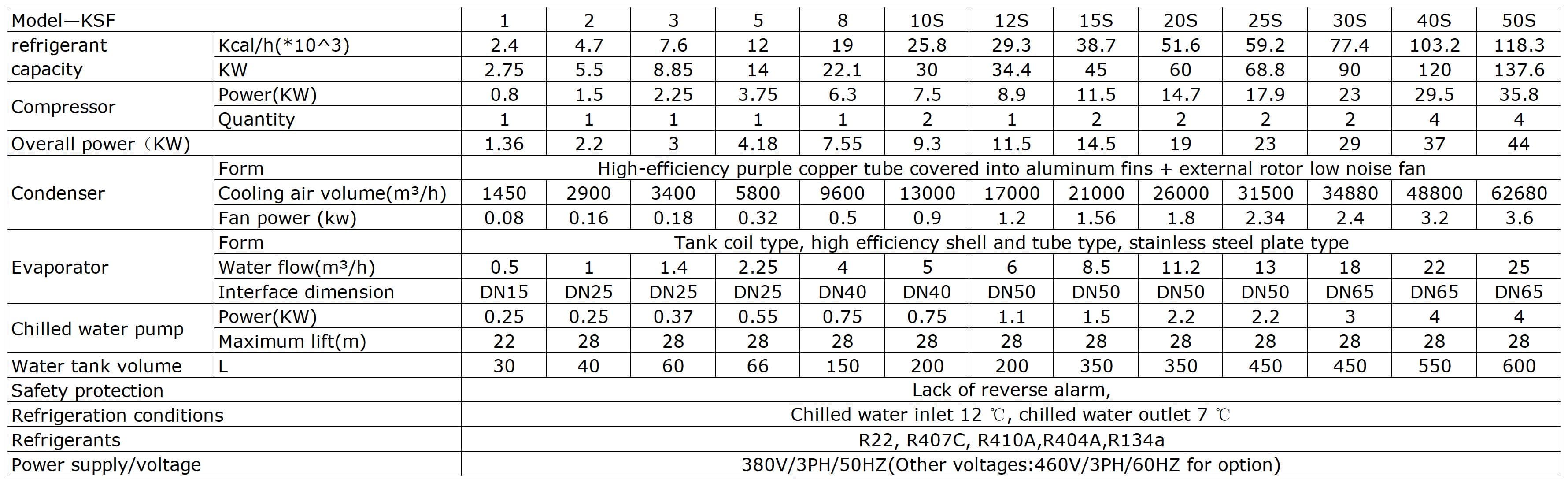

Technical Specification
